Home :: Network Hardware :: Network Cable :: Fiber optic :: OM1 SC/ST 62.5/125 Mode-Conditioning Fiber Optic Patch Cable - Mode conditioning cable - SC multi-mode (M) to ST multi-mode ST single-mode (M) - 10 m - 62.5 / 125 micron - OM1 - orange

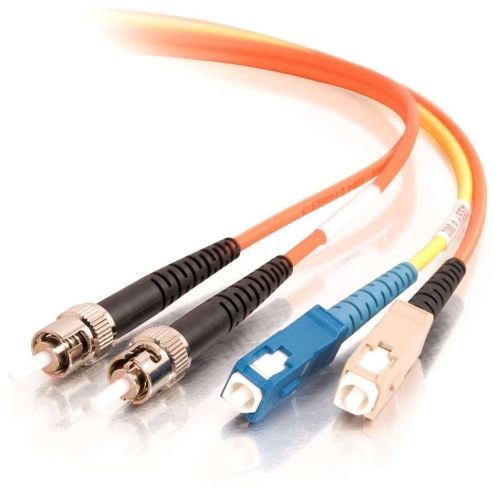

C2G OM1 SC/ST 62.5/125 Mode-Conditioning Fiber Optic Patch Cable - Mode conditioning cable - SC multi-mode (M) to ST multi-mode ST single-mode (M) - 10 m - 62.5 / 125 micron - OM1 - orange

OM1 SC/ST 62.5/125 Mode-Conditioning Fiber Optic Patch Cable - Mode conditioning cable - SC multi-mode (M) to ST multi-mode ST single-mode (M) - 10 m - 62.5 / 125 micron - OM1 - orange
Manufacturer
C2G
SKU
C2G-New-27004
Quantity in stock
2 item(s) available
Weight
1.00 lbs
Market price:
$329.99
Time to ship:
within 4 days
Our price:
$150.69
54%


Quantity in stock
2 item(s) available
Quantity (2 available)
Mode Conditioning Cables from Cables To Go are designed for use in Gigabit Ethernet 1000BASE-LX applications. It is fully compliant with IEEE 802.3z application standards. Mode Conditioning Cables are needed in applications where new high-speed Gigabit 1000BASE-LX routers and switches are being deployed into existing multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals caused by Differential Mode Delay (DMD) effects severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.

Specification:
Network Cable Type: Patch Cable
Cable Technology: Fiber Optic
Left Connector Gender: Female
Right Connector Gender: Female
Left Connector Type: ST
Right Connector Type: SC
Networking / Compliant Standards: IEEE-802.3z (Gigabit Ethernet)
Features: Mode 62.5/125um; Assembled with FIS zirconia ferrule connectors; Masks Differential Mode Delay (DMD) effects; Use in place of standard equipment-to-cable plant patch cord; Conector Qty(each side) 2
Length: 32.808 feet
Enclosure Color: Orange
Service & Support Type: Limited Lifetime Manufacturer Warranty
