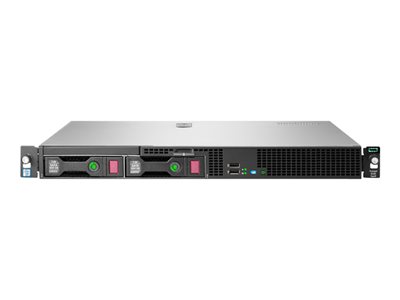

HPE DL20 Gen9 E3-1220v5 LFF Base Svr
This product is mentioned in the following documents:
Quickspecs HPE ProLiant DL20 Generation9 (Gen9)
Specification:
Type: Server
Product Form Factor: Rack-mountable
Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability: 1-way
Front Accessible Bays Qty: 2
Hot-Swap Bays Qty: 2
CPU: Intel Xeon E3-1200 series E3-1220V5 / 3 GHz
Number of Cores: Quad-Core
CPU Qty: 1
Max CPU Qty: 1
CPU Upgradability: Upgradable
CPU Socket: LGA1151 Socket
Chipset Type: Intel C232
Installed Size: L3 cache - 8 MB
Installed Size: 8 GB / 64 GB (max)
Technology: DDR4 SDRAM
Effective Memory Speed: 2133 MHz
Form Factor: DIMM 288-pin
Features: Unbuffered dual channel memory architecture
Configuration Features: 1 x 8 GB
Type: No HDD
Type: 1 x RAID - PCIe x4
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HP Dynamic Smart Array B140i
Channel Qty: 10
RAID Level: RAID 0 RAID 1 RAID 5 RAID 10
Monitor Type: None.
Interface (Bus) Type: PCI Express x2
Ethernet Ports: 2 x Gigabit Ethernet
Ethernet Controller: HP NC332i
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake on LAN (WoL) PXE support
Compliant Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab
Bays: 2 (total) / 2 (free) x external 3.5 LFF
Slots: 4 (total) / 3 (free) x DIMM 288-pin
