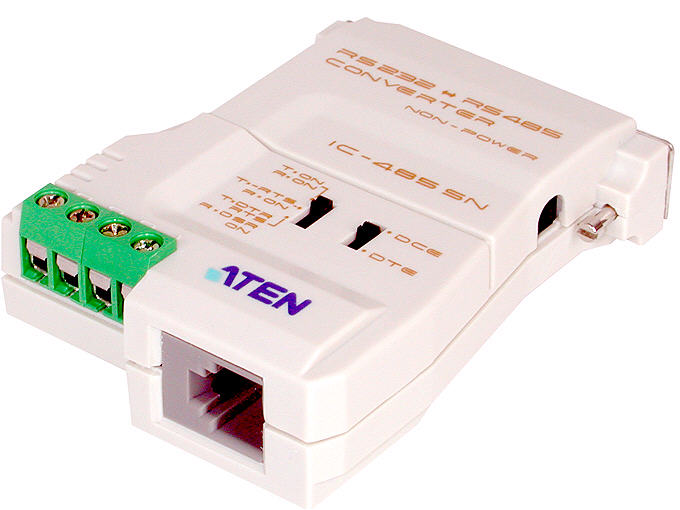

Aten RS-232 to RS-485/RS-422 Bidirectional Converter Non-Powered

RS-232 to RS-485/RS-422 Bidirectional Converter Non-Powered
Manufacturer
Aten
SKU
Aten-New-IC485SN
Quantity in stock
2 item(s) available
Weight
0.93 lbs
Time to ship:
within 4 days
Our price:
$86.06

Quantity in stock
2 item(s) available
Quantity (2 available)
The is hardware solutions to the problem of converting signals between two standards. Data transfer can take place at up to 1200m (4000 feet ) over four or two wire cable for full or half duplex respectively. The converters can handle any RS-485/RS-422 device allowing it to function as a short haul modem or interface converter. Request to send (RTS) selection allows up to 32 receivers to be set up in a multidrop installation making for a cost effective network configuration. The is a bi-directional interface converters for RS-232 and RS-485. With the IC-485 series it provides Point-to-Point Multidrop and Simplex operations.

Specification:
Networking Type: Serial adapter
Form Factor: External
Networking Interface: N/A
Data Transfer Rate: 100 Kbps
Data Link Protocol: Serial
Connectivity Technology: Wired
Networking / Compliant Standards: Serial RS-232
Width: 2.10 Inch
Depth: 2.90 Inch
Height: 0.70 Inch
