Home :: Storage Devices :: Storage Adapters :: RAID :: Smart Array P411/256MB Controller - Storage controller (RAID) - 8 Channel - SAS 2 low profile - 600 MBps - RAID 0 1 5 10 - PCIe 2.0 x8

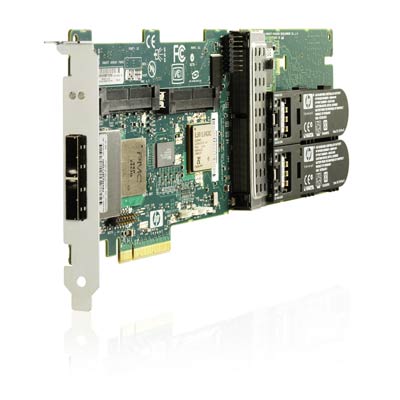

HP Smart Array P411/256MB Controller - Storage controller (RAID) - 8 Channel - SAS 2 low profile - 600 MBps - RAID 0 1 5 10 - PCIe 2.0 x8

Smart Array P411/256MB Controller - Storage controller (RAID) - 8 Channel - SAS 2 low profile - 600 MBps - RAID 0 1 5 10 - PCIe 2.0 x8
Manufacturer
HP
SKU
HP-New-AM311A
Quantity in stock
2 item(s) available
Weight
1.00 lbs
Time to ship:
within 4 days
Our price:
$1192.53

Quantity in stock
2 item(s) available
Quantity (2 available)
List of compatible models includes: Superdome 2 Iox Enclosure

PCI P411 SAS 256MB CONTROLLER

This product is mentioned in the following documents:
QuickSpecs HP Integrity Smart Array P411/256MB 2-Port External PCIe 6Gb SAS Controller
QuickSpecs Microsoft Windows Server 2008 R2 On Integrity Systems
QuickSpecs HP Integrity rx2800 i2 Server
QuickSpecs HP D2000 Disk Enclosures
Quickspecs HPE Integrity Smart Array P411/256MB 2-Port External PCIe 6Gb SAS Controller
RAID-01 (ciss) B.11.31.1005 Mass Storage Driver Release Notes Edition 2 (August 2010)
RAID-01 (ciss) B.11.31.1009 Mass Storage Driver Release Notes Edition 2 (September 2010)
HP Smart Array RAID Controllers Support Matrix - April 2011
Quickspecs Microsoft Windows Server 2008 R2 On Integrity Systems
QuickSpecs HPE Integrity rx2800 i2 Server
Quickspecs HPE Integrity rx2800 i2 Server
Quickspecs HPE Integrity rx2800 i4 Server
QuickSpecs HPE Integrity rx2800 i4 Server
QuickSpecs HP D2000 Disk Enclosures
Quickspecs HPE D2000 Disk Enclosures
Quickspecs HPE Integrity Superdome 2
Quickspecs HPE OpenVMS Version 8.4 for Integrity and Alpha servers

Specification:
Device Type: Storage controller (RAID) - plug-in card - low profile
Host Bus: PCIe 2.0 x8
Interface: SAS 2
Data Transfer Rate: 600 MBps
Buffer Size: 256 MB
Supported Devices: Hard drive disk array (RAID)
Channel Qty: 8
Max Storage Devices Qty: 64
RAID Level: RAID 0 RAID 1 RAID 5 RAID 10
Interfaces: 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ( external )
Compatible Slots: 1 x PCI Express 2.0 x8
Width: 2.2 in
Depth: 9.5 in
Height: 7.5 in
