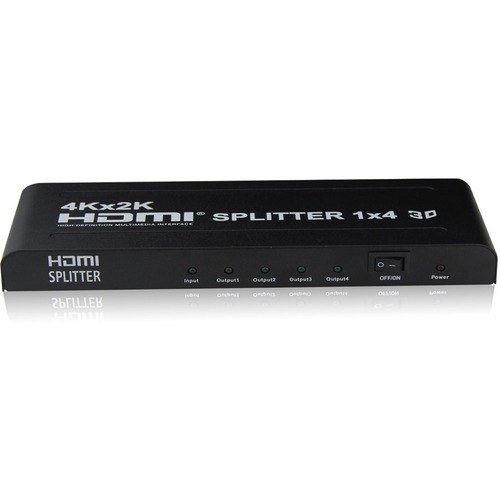

4xem 4 Port HDMI Splitter Supports3D 4K/2K - 340 MHz to 340 MHz - HDMI In - HDMI Out

4XEM 4-Port HDMI Splitter and Signal Amplifier for 4K/2K 3D

Specification:
Manufacturer: 4XEM Corporation
Marketing Information: 4XEM 4-Port HDMI Splitter and Signal Amplifier for 4K/2K 3D
Marketing Information: Split the UHD 3D 4K/2K signal from one HDMI device into four using 4XEMs 1x4 3D 4K/2K HDMI splitter (4XHDMI44K2K). Simply connect your 3D or 4K/2K Displays to the splitters outputs.
Marketing Information: Problem it solves
Marketing Information: Display your video on multiple HDMI compatible televisions or monitors. Ideal for retail displays trade shows sports bar etc.
Marketing Information: 4XEM gear is respected industry wide for its high performance premium quality and our after sales support.
Product Name: 4 Port HDMI Splitter Supports3D 4K/2K
Product Type: Signal Splitter
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 1
Number of HDMI Outputs: 4
Additional Information: HDMI version........................................................................................ HDMI 1.4b
Additional Information: HDCP version........................................................................................HDCP1.2
Additional Information: HDMI resolution ...............................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Additional Information: Support video color format ................................................24bit/deep color 30bit36bit48bit
Additional Information: Support audio format...................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Additional Information: Max bandwidth........................................................................................340MHz
Additional Information: Max baud rate.........................................................................................10.2Gbps
Additional Information: Input/Output TMDS signal .........................................................0.5~1.5Volts p-p(TTL)
Additional Information: Input/Output DDC signal ................................................................. 5Volts p-p (TTL)
Additional Information: Input cable distance........ ..................................?15m AWG26 HDMI 1.4standard cable
Additional Information: Output cable distance........................................?25m AWG26 HDMI 1.4 standard cable
Additional Information: Max working current......................................................................................1.2A
Additional Information: Power adapter format..Input ....................AC (50HZ 60HZ) 100V-240V; Output DC5V/2A
Additional Information: Operating Temperature range............................................................... (-15 to +55?)
Additional Information: Operating Humidity range.............................................5 to 90%RH (No Condensation)
Certifications & Standards: FCC
Certifications & Standards: CE
Green Compliance Certificate/Authority: RoHS
Green Compliant: Yes
Height: 0.9
Length: 4.5
Weight (Approximate): 7.05 oz
Width: 2.4
Input Voltage: 5 V DC
Maximum Frequency: 340 MHz
Limited Warranty: 1 Year
