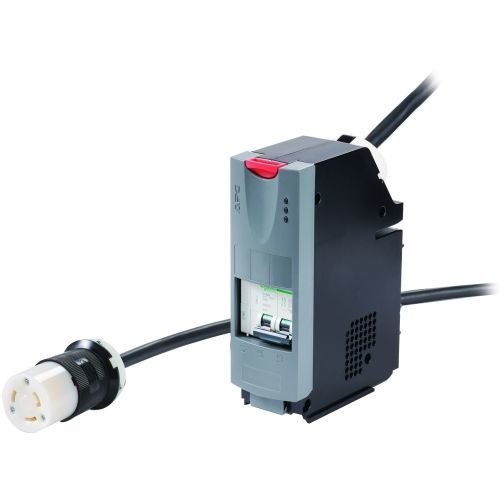

APC Power Distribution Modules simplify both the global deployment of a standard power distribution system and the expansion of existing APC Modular Power Distribution Unit solutions. A variety of breaker and connector options can be chosen to supply either three-phase or single-phase power to the load. Safety features of the Power Distribution Modules include a latch that disconnects the breaker from AC utility power and connectors with positive locking mechanisms. Built-in monitoring supplies information about the power consumption of connected devices.
Specification:
Device Type: Automatic circuit breaker - plug-in module
Color: Black
Input Voltage: AC 208 V
Frequency Required: 60 Hz
Input Connector(s): 1
Power Output Connectors Details: 1 x power NEMA L6-30
Output Voltage: AC 208 V
Max Electric Current: 30 A
Circuit Protection: Circuit breaker
Cables Included: 1 x power cable - integrated - 55 ft
Features: LED indicators
Compliant Standards: UL RoHS Exemption 7b REACH
Service & Support: 1 year warranty
Service & Support Details: Limited warranty - 1 year
Min Operating Temperature: 32
