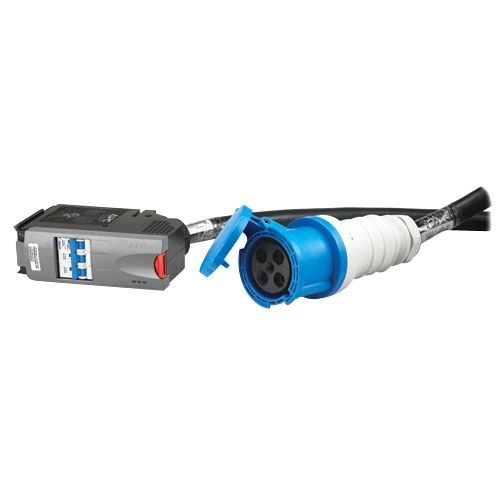

APC Power Distribution Modules simplify both the global deployment of a standard power distribution system and the expansion of existing APC Modular Power Distribution Unit solutions. A variety of breaker and connector options can be chosen to supply either three-phase or single-phase power to the load. Safety features of the Power Distribution Modules include a latch that disconnects the breaker from AC utility power and connectors with positive locking mechanisms. Built-in monitoring supplies information about the power consumption of connected devices.
Specification:
Device Type: Automatic circuit breaker - plug-in module
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 3-phase
Frequency Required: 60 Hz
Input Connector(s): Power IEC 309 EN 60309 60A
Power Output Connectors Details: 1 x power IEC 309 EN 60309 60A
Output Voltage: AC 208 V
Max Electric Current: 60 A
Circuit Protection: Circuit breaker
Remote Management Protocol: SNMP HTTP
Cables Included: 1 x power cable - 22 ft
Features: LED indicators
Compliant Standards: UL RoHS Exemption 7b
Service & Support: 1 year warranty
Service & Support Details: Limited warranty - 1 year
Width: 17.5 in
Depth: 16 in
Height: 5 in
Weight: 11.5 lbs
Designed For: P/N: SY100K100F SY10K100F SY20K100F SY30K100F SY40K100F SY50K100F SY60K100F SY70K100F SY80K100F SY90K100F
Specification:
Device Type: Automatic circuit breaker - plug-in module
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 3-phase
Frequency Required: 60 Hz
Input Connector(s): Power IEC 309 EN 60309 60A
Power Output Connectors Details: 1 x power IEC 309 EN 60309 60A
Output Voltage: AC 208 V
Max Electric Current: 60 A
Circuit Protection: Circuit breaker
Remote Management Protocol: SNMP HTTP
Cables Included: 1 x power cable - 22 ft
Features: LED indicators
Compliant Standards: UL RoHS Exemption 7b
Service & Support: 1 year warranty
Service & Support Details: Limited warranty - 1 year
Width: 17.5 in
Depth: 16 in
Height: 5 in
Weight: 11.5 lbs
Designed For: P/N: SY100K100F SY10K100F SY20K100F SY30K100F SY40K100F SY50K100F SY60K100F SY70K100F SY80K100F SY90K100F
