Engineered to deliver the highest level of business continuity possible the Symmetra LX uses a modular redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease footprint or U-space needed in an equipment rack increase speed and ease of deployment and reduce repair time. With built-in network manageability the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Specification:
Product Line: Symmetra
Product Series: LX

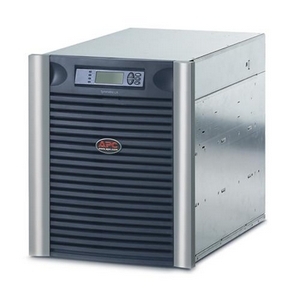

Product Name: Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mountable UPS
Marketing Information: Engineered to deliver the highest level of business continuity possible the Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mountable uses a modular redundant architecture that can scale power and run-time as demand increases or when higher levels of availab
Product Type: Dual Conversion Online UPS
Plug/Connector Type: Hard Wire 3-wire PH + N + G
Receptacles: 1 x Hard Wire 3-wire H N + G
Receptacles: 8 x IEC 320-C13
Receptacles: 6 x IEC 320-C19
Load Capacity: 4 kVA/2.80 kW
Input Voltage: 440 V AC
Input Voltage Range: 400 V AC 3-phase Nominal
Input Voltage Range: 230 V AC Nominal
Input Voltage Range: 290 V AC to 480 V AC 3-phase Mains Operation
Input Voltage Range: 155 V AC to 276 V AC Mains Operation
Output Voltage: 230 V AC Nominal
Frequency: 45 to 65 Hz Input
Frequency: 47 to 63 Hz Output
Waveform Type: Sine Wave
Power Range: 4 kVA to 8 kVA / 2.80 kW to 5.60 kW
Network Management: SNMP Manageable
Overload Protection: Resettable circuit breakers
Bypass Switch: Automatic
Bypass Switch: Manual
Emergency Power OFF: Yes
Battery Management: Intelligent Battery Management
Control Panel: Multi-function LCD status and control console
Modular Slots: 1 x SmartSlot
Batteries: Spill-proof Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time: 0.13 Hour 2.80 kW Full Load
Backup/Run Time: 0.33 Hour 1.40 kW Half Load
Temperature: 32
Specification:
Product Line: Symmetra
Product Series: LX
Product Name: Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mountable UPS
Marketing Information: Engineered to deliver the highest level of business continuity possible the Symmetra LX 4kVA Scalable to 8kVA N+1 Rack-mountable uses a modular redundant architecture that can scale power and run-time as demand increases or when higher levels of availab
Product Type: Dual Conversion Online UPS
Plug/Connector Type: Hard Wire 3-wire PH + N + G
Receptacles: 1 x Hard Wire 3-wire H N + G
Receptacles: 8 x IEC 320-C13
Receptacles: 6 x IEC 320-C19
Load Capacity: 4 kVA/2.80 kW
Input Voltage: 440 V AC
Input Voltage Range: 400 V AC 3-phase Nominal
Input Voltage Range: 230 V AC Nominal
Input Voltage Range: 290 V AC to 480 V AC 3-phase Mains Operation
Input Voltage Range: 155 V AC to 276 V AC Mains Operation
Output Voltage: 230 V AC Nominal
Frequency: 45 to 65 Hz Input
Frequency: 47 to 63 Hz Output
Waveform Type: Sine Wave
Power Range: 4 kVA to 8 kVA / 2.80 kW to 5.60 kW
Network Management: SNMP Manageable
Overload Protection: Resettable circuit breakers
Bypass Switch: Automatic
Bypass Switch: Manual
Emergency Power OFF: Yes
Battery Management: Intelligent Battery Management
Control Panel: Multi-function LCD status and control console
Modular Slots: 1 x SmartSlot
Batteries: Spill-proof Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time: 0.13 Hour 2.80 kW Full Load
Backup/Run Time: 0.33 Hour 1.40 kW Half Load
Temperature: 32
