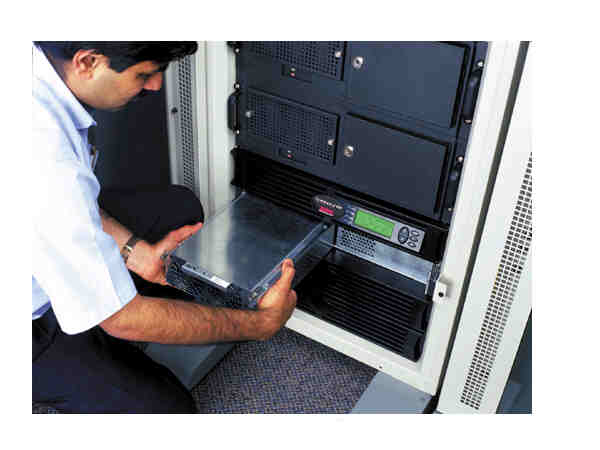

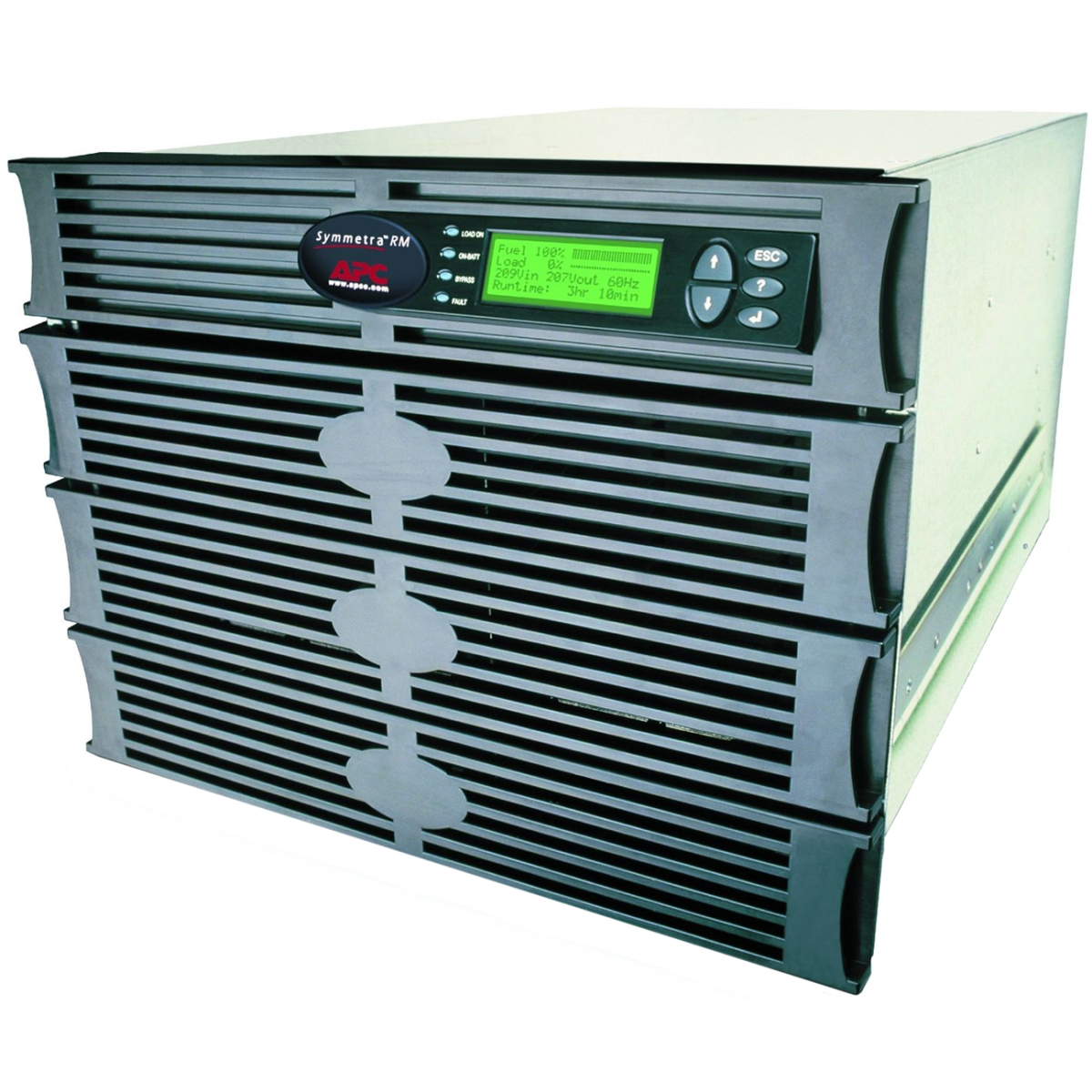

The Symmetra RM brings the proven and patented Symmetra Power Array technology in a rack-mountable form. With more servers storage products and other mission-critical IT equipment becoming rack-based the need is increasing for high availability innovative rack-based power solutions. Symmetra RM meets this need with scalable redundant units. Symmetra Rack Mount is an ideal solution for branch office locations small and medium business data centers internetworking and telecom racks and all other high availability applications. In addition to the advantages of hot-swappability and redundancy rack users can also benefit from Symmetras self-diagnosing scalable components and integrated Web/SNMP management features.
Specification:
Power Device Type: Power Array
Power Device / Form Factor: Rack-Mountable
Voltage Output: AC 208/240 V ( 57 - 63 Hz )
Voltage Input: AC 208/240 V
Power Provided (W): 2.8 KW
Power Provided (VA): 4000 VA
Surge Suppression: Standard
Networking Type: Network Adapter

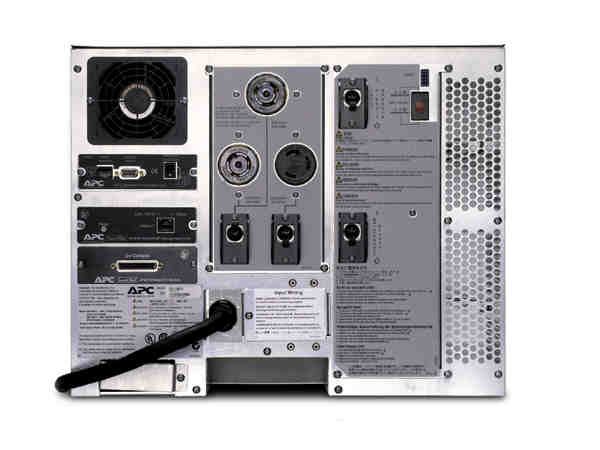

Interfaces & Connections: Interfaces 1 x management - RS-232 - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Input Connector(s): 1 x power NEMA L6-30
Output Connector(s): 2 x power NEMA L6-20 1 x power NEMA L6-30
Battery Type: UPS Battery
Battery Installed Qty: 2
Battery Form Factor: Plug-in module
Battery / Run Time: 12.4 min at full load
Battery Technology: Lead-acid
Enclosure Color: Black
Width: 19.00 Inch
Depth: 28.70 Inch
Height: 14.00 Inch
Service & Support Type: 2 years repair or replace
Features: Audible alarm
Specification:
Power Device Type: Power Array
Power Device / Form Factor: Rack-Mountable
Voltage Output: AC 208/240 V ( 57 - 63 Hz )
Voltage Input: AC 208/240 V
Power Provided (W): 2.8 KW
Power Provided (VA): 4000 VA
Surge Suppression: Standard
Networking Type: Network Adapter
Interfaces & Connections: Interfaces 1 x management - RS-232 - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Input Connector(s): 1 x power NEMA L6-30
Output Connector(s): 2 x power NEMA L6-20 1 x power NEMA L6-30
Battery Type: UPS Battery
Battery Installed Qty: 2
Battery Form Factor: Plug-in module
Battery / Run Time: 12.4 min at full load
Battery Technology: Lead-acid
Enclosure Color: Black
Width: 19.00 Inch
Depth: 28.70 Inch
Height: 14.00 Inch
Service & Support Type: 2 years repair or replace
Features: Audible alarm
