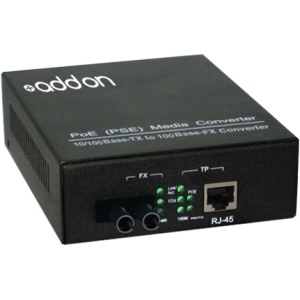

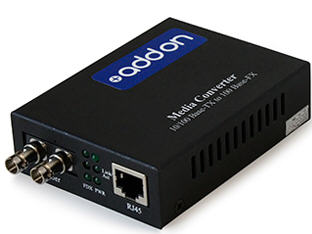

Addon 100Base-TX To 100Base-LX SMF ST 1310nm 2k POE Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x ST Ports - No - 10/100Base-TX 100Base-FX - Desktop

AddOn Network Upgrades is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-FX(ST) via a 1310nm multi-mode fiber (MMF) ST connector which allows distance reach up to 2km. provides a cost effective conversion from 100Base Copper to 100Base-FX fiber while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault.

Specification:
Product Name: 100Base-TX To 100Base-LX SMF ST 1310nm 2k POE Media Converter
Marketing Information: ADD-FMCP-FX-ST is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-FX(ST) via a 1310nm multi-mode fiber (MMF) ST connector which allows distance reach up to 2km. ADD-FMCP-FX-ST provides a cost effective conversion from 100Base Copper to 100B
Marketing Information: Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program we can guarantee your produ
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of PoE (RJ-45) Ports: 1
Number of ST Ports: 1
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 1.24 Mile
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network Technology: 100Base-FX
Input Voltage: 110 V AC
Form Factor: Desktop
Height: 1.5
Width: 5
Depth: 6
Weight (Approximate): 1.40 lb
Certifications & Standards: IEEE Standards
Certifications & Standards: 802.3
Certifications & Standards: 802.3u
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Limited Warranty: 3 Year
