Home :: Network Hardware :: Repeater / Transceiver :: 1000Base-TX To 1000Base-LX SC 1310nm 10km POE Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T 1000Base-LX

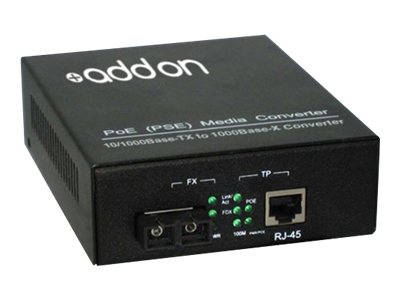

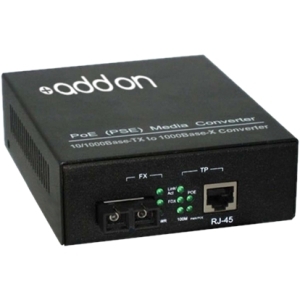

Addon 1000Base-TX To 1000Base-LX SC 1310nm 10km POE Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T 1000Base-LX

Manufacturer
SKU
Addon-New-ADD-GMCP-LX-1SC
Quantity in stock
3 item(s) available
Weight
2.00 lbs
Part Number
ADD-GMCP-LX-1SC
Condition
New
Market price:
$363.00
Time to ship:
within 4 days
Our price:
$210.66
42%


Quantity (3 available)
AddOnNetwork Upgrades is a Media Converter that converts a 1000Base-TX(RJ45) to 1000Base-LX(SC) via a 1310nm single-mode fiber (SMF) SC connector which allows distance reach up to 10km. provides a cost effective conversion from 1000Base Copper to 1000Base-LX fiber while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault.

Specification:
Product Name: 1000Base-TX To 1000Base-LX SC 1310nm 10km POE Media Converter
Marketing Information: ADD-GMCP-LX-1SC is a Media Converter that converts a 1000Base-TX(RJ45) to 1000Base-LX(SC) via a 1310nmsingle-mode fiber (SMF) SC connector which allows distance reach up to 10km. ADD-GMCP-LX-1SC provides a cost effective conversion from 1000Base Copper t
Marketing Information: Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program we can guarantee your produ
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 6.21 Mile
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-LX
Input Voltage: 120 V AC
Height: 1.5
Width: 5
Depth: 6
Weight (Approximate): 1.40 lb
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Limited Warranty: 3 Year
