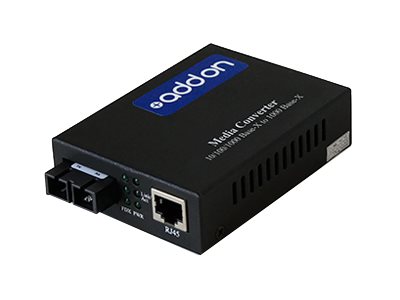

This product provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault.
Specification:
Device Type: Media converter
Form Factor: External
Localization: Europe
Connectivity Technology: Wired
Cabling Type: 10Base-T 1000Base-SX 1000Base-TX 100Base-TX
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 850 nm
Max Transfer Distance: 1800 ft
Features: Link Fault Pass Through function (LFP) over-current protection Power Sourcing Equipment (PSE)
Compliant Standards: IEEE 802.3af
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45
Specification:
Device Type: Media converter
Form Factor: External
Localization: Europe
Connectivity Technology: Wired
Cabling Type: 10Base-T 1000Base-SX 1000Base-TX 100Base-TX
Data Link Protocol: Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 850 nm
Max Transfer Distance: 1800 ft
Features: Link Fault Pass Through function (LFP) over-current protection Power Sourcing Equipment (PSE)
Compliant Standards: IEEE 802.3af
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45
