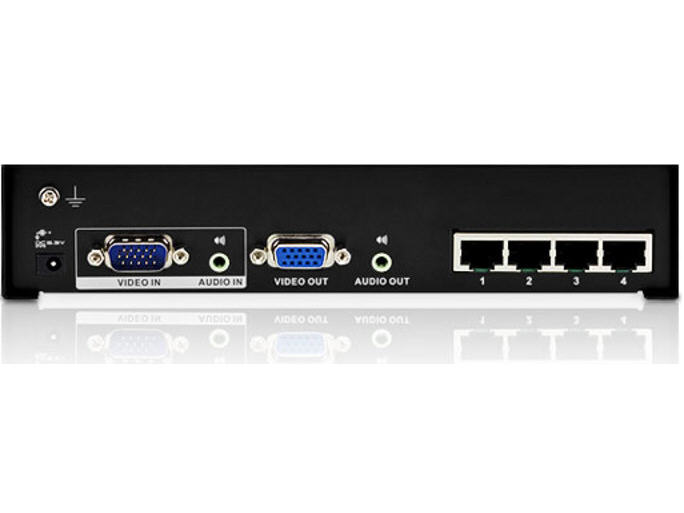

Aten VanCryst Video Extender - 1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In

The A/V Over Cat 5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays. Connect to an ATEN A/V Over Cat 5 Receiver* via Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the single input source. The A/V Over Cat 5 Splitter is ideal for any professional A/V installation that requires multimedia content to delivered to multiple destinations.

Specification:
Product Line: VanCryst
Product Name: VanCryst VS1204T Video Extender
Marketing Information: The VS1204T / VE170 system is a cost-effective efficient solution for sending high quality audio and video content to as many as four receiving units up to a maximum of 1000 feet from the source.
Marketing Information: Installation consists of connecting the VS1204T transmitter to your VGA / Audio source then via CAT5e cable to your VE170 receivers.
Product Type: Video Extender
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 5
Maximum Operating Distance: 1000 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 4
Number of VGA Inputs: 1
Number of VGA Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 5.3 V DC
Material: Metal
Height: 1.7
Width: 7.9
Depth: 1.1
Form Factor: Rack-mountable
Weight (Approximate): 1.30 lb
Package Contents: VanCryst VS1204T Video Extender
Package Contents: 1 x Power Adapter
Package Contents: 1 x Rack Mount Kit
Package Contents: 1 x Foot Pad Set
Package Contents: 1 x Grounding Wire
Package Contents: 1 x User Guide
