Quick Facts
Specification:

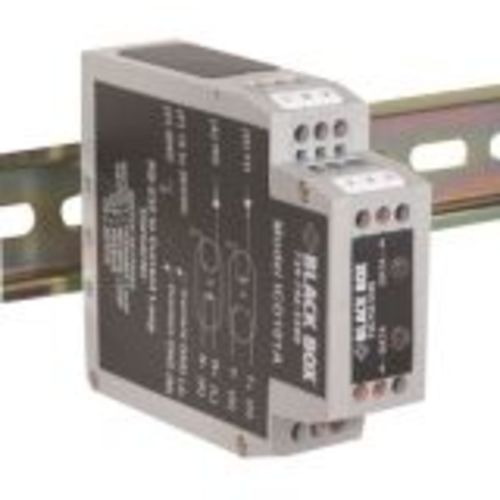

Product Name: RS-232 to Current Loop DIN Rail Converter with Opto-Isolation
Marketing Information: Quick Facts
Marketing Information: Has one 20-mA transmit loop and one 20-mA receive loop.
Marketing Information: Further Details
Marketing Information: Both signals feature 1000-VDC opto-isolation to protect against surges and ground loops.
Marketing Information: Both loops can be set as active or passive. When set to active an isolated 20-mA current is supplied to each loop.
Marketing Information: Top speed of 19.2 kbps.
Product Type: Signal Converter
Input Voltage Range: 10 V DC to 30 V DC
Ports: 2 x Terminal Block
Height: 0.9
Width: 2.9
Depth: 3.9
Additional Information: Distance 2000 ft. (609.6 m) maximum
Additional Information: Isolation 1000 VDC for 1 second
Additional Information: Operating Environment Temperature -40 to 176
