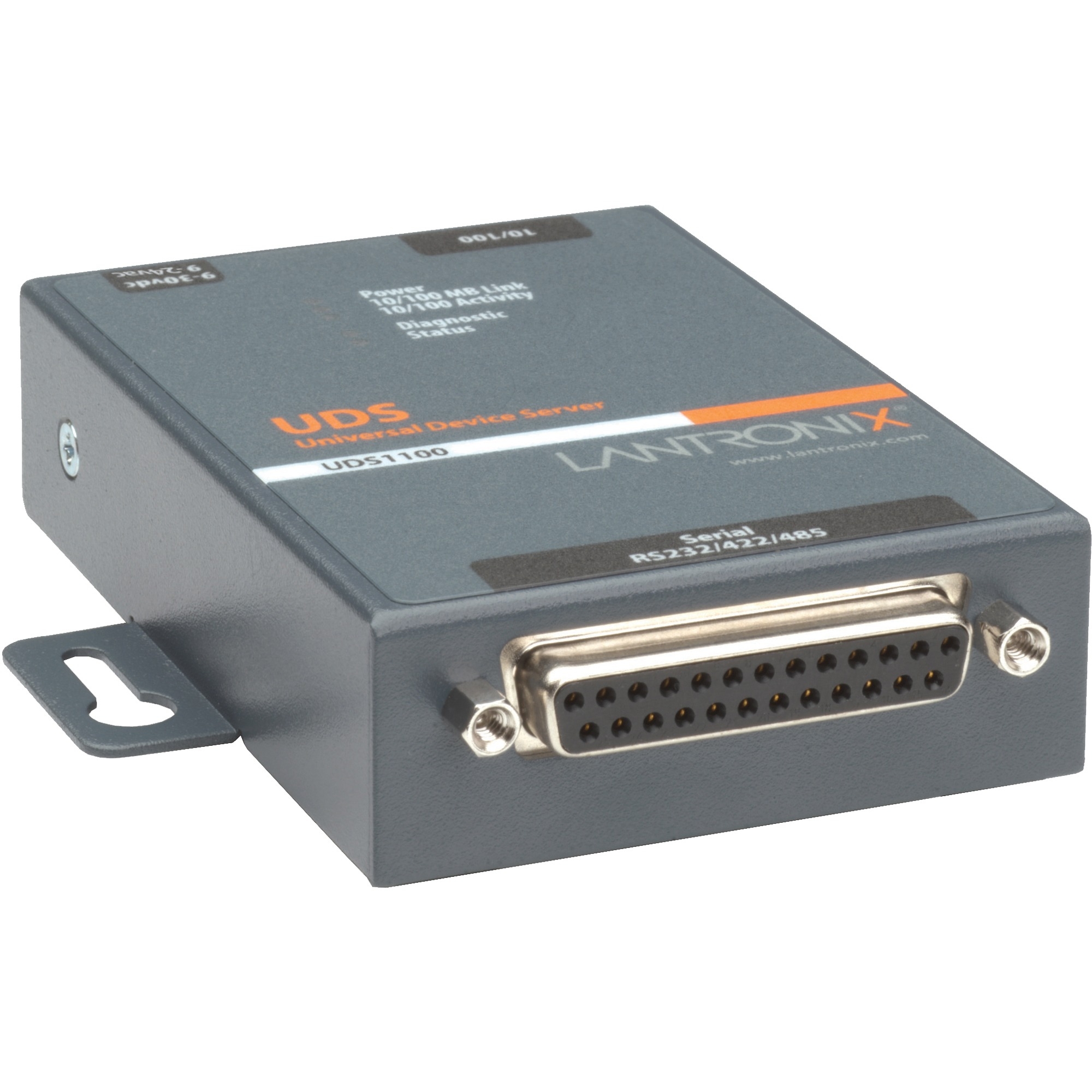

With the UDS1100 virtually any piece of equipment with a serial port can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network. This product is a US domestic power 120 VAC power supply.
Specification:
Device Type: Device server
Width: 2.5 in
Depth: 3.5 in
Height: 0.9 in
Weight: 7.1 oz
Processors Installed: 1 x 48 MHz
Max Supported Qty: 1
RAM: 256 KB SRAM
Flash Memory: 2 MB
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Ethernet Fast Ethernet RS-232 RS-422 RS-485
Network / Transport Protocol: TCP/IP UDP/IP ICMP/IP
Remote Management Protocol: SNMP Telnet HTTP
Status Indicators: Link activity power status
Features: Flow control DHCP support ARP support half duplex mode full duplex mode
Interfaces: 1 x
Compliant Standards: FCC Class A certified CSA TUV VCCI C-Tick CISPR 22 Class A EN 61000-3-2 EN55022 EN 61000-3-3 EN55024 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 15 ICES-003 Class A EN 61000-4-5 FCC EN 61000-4-11 RoHS EN
Voltage Required: AC 120 V
Software Included: Drivers & Utilities
OS Required: Microsoft Windows 98/ME/NT/2000/XP
Service & Support: 1 year warranty
Service & Support Details: Limited warranty - 1 year
Min Operating Temperature: 41
Specification:
Device Type: Device server
Width: 2.5 in
Depth: 3.5 in
Height: 0.9 in
Weight: 7.1 oz
Processors Installed: 1 x 48 MHz
Max Supported Qty: 1
RAM: 256 KB SRAM
Flash Memory: 2 MB
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Ethernet Fast Ethernet RS-232 RS-422 RS-485
Network / Transport Protocol: TCP/IP UDP/IP ICMP/IP
Remote Management Protocol: SNMP Telnet HTTP
Status Indicators: Link activity power status
Features: Flow control DHCP support ARP support half duplex mode full duplex mode
Interfaces: 1 x
Compliant Standards: FCC Class A certified CSA TUV VCCI C-Tick CISPR 22 Class A EN 61000-3-2 EN55022 EN 61000-3-3 EN55024 FCC Part 15 B EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 FCC Part 15 ICES-003 Class A EN 61000-4-5 FCC EN 61000-4-11 RoHS EN
Voltage Required: AC 120 V
Software Included: Drivers & Utilities
OS Required: Microsoft Windows 98/ME/NT/2000/XP
Service & Support: 1 year warranty
Service & Support Details: Limited warranty - 1 year
Min Operating Temperature: 41
