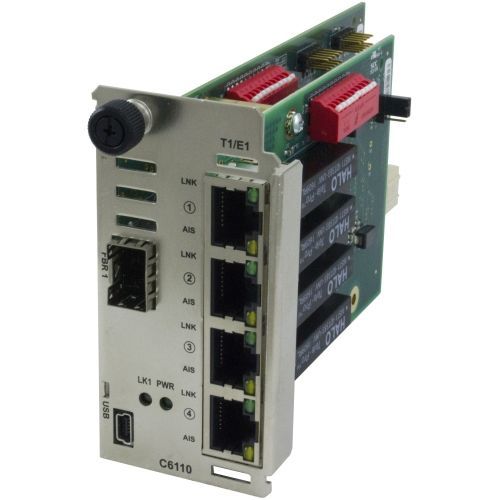

The ION 4xT1/E1/J1 copper to fiber network interface device (NID) provides a solution for those users that need to extend multiple T1/E1 connections over fiber. The ION 4xT1/E1/J1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
Specification:
Device Type: Short-haul modem
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Transfer Rate: 2.048 Mbps
Line Rate: T-1/E-1/J-1
Framing Format: ANSI T1.403 G.703
Max Transfer Distance: 0.9 miles
Status Indicators: Power status
Features: Manageable firmware upgradable
Expansion Slot(s): 1 (total) / 1 (free) x SFP (mini-GBIC)
Interfaces: 4 x T1/E1/J1 - RJ-48 female
Compatible Slots: 1 x expansion slot
Compliant Standards: EN55024 EN55022 Class A
Power Consumption Operational: 6 Watt
Width: 1.7 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
