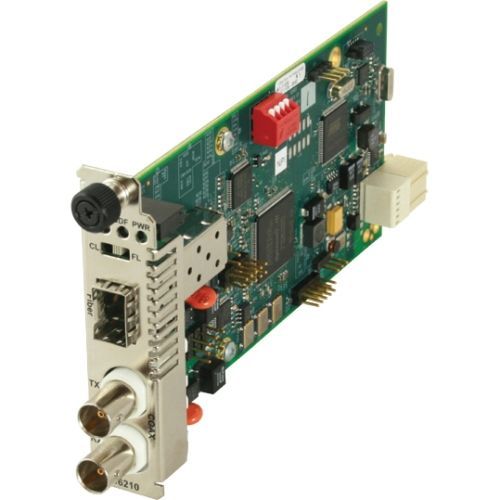

The DS3 - T3/E3 copper to fiber network interface device (NID) provides a solution for those users that need to extend DS3 connections over fiber.The DS3 - T3/E3s supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.The DS3 - T3/E3 NID must be used in pairs. A typical installation will include a chassis card installed in the ION Platform locally and a stand-alone device installed at the remote location.
Specification:
Device Type: Short-haul modem
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Transfer Rate: 44.7 Mbps
Optical Wave Length: 1300 nm
Line Rate: T-3/E-3
Remote Management Protocol: SNMP
Max Transfer Distance: 1.2 miles
Status Indicators: Power status
Features: Manageable firmware upgradable
Interfaces: 1 x T3/E3 - SC multi-mode female x 2
Compliant Standards: FCC Class A certified EN55022 Class A
Power Consumption Operational: 2.6 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Specification:
Device Type: Short-haul modem
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Transfer Rate: 44.7 Mbps
Optical Wave Length: 1300 nm
Line Rate: T-3/E-3
Remote Management Protocol: SNMP
Max Transfer Distance: 1.2 miles
Status Indicators: Power status
Features: Manageable firmware upgradable
Interfaces: 1 x T3/E3 - SC multi-mode female x 2
Compliant Standards: FCC Class A certified EN55022 Class A
Power Consumption Operational: 2.6 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
