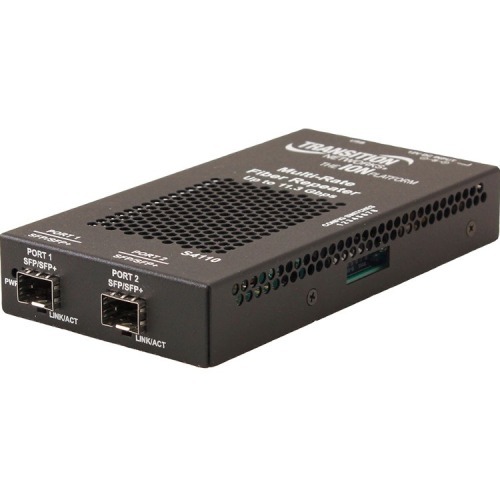

The S4110-4848 is a 10Gbps protocol independent media converter with two pluggable SFP+ ports. Each port can support data rates from 1Gbps up to 11.5Gbps allowing network designers to customize the S4110 with a pair of SFP modules from Transition Networks wide SFP product offering to meet their network requirements. The S4110-4848 can be used as any-rate to same-rate fiber mode converter as well as a WDM transponder.
Specification:
Device Type: Fiber media converter
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet SONET/SDH 10 Gigabit Ethernet Fibre Channel 2Gb Fibre Channel 4Gb Fibre Channel 10Gb Fibre Channel 8Gb Fibre Channel
Data Transfer Rate: 11.5 Gbps
Line Rate: OC-48/OC-192
Status Indicators: Power link/activity
Features: CWDM repeating mode built-in DIP switch Link Pass-Through Automatic Link Restoration
Compliant Standards: IEEE 802.3ae ITU-T G.709
Interfaces: 2 x - SFP+
MTBF: 687000 hours
Compliant Standards: FCC Class A certified EN55024 EN55022 Class A MSA
Power Device: External power adapter
Width: 3.2 in
Depth: 6.5 in
Height: 1 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
Specification:
Device Type: Fiber media converter
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet SONET/SDH 10 Gigabit Ethernet Fibre Channel 2Gb Fibre Channel 4Gb Fibre Channel 10Gb Fibre Channel 8Gb Fibre Channel
Data Transfer Rate: 11.5 Gbps
Line Rate: OC-48/OC-192
Status Indicators: Power link/activity
Features: CWDM repeating mode built-in DIP switch Link Pass-Through Automatic Link Restoration
Compliant Standards: IEEE 802.3ae ITU-T G.709
Interfaces: 2 x - SFP+
MTBF: 687000 hours
Compliant Standards: FCC Class A certified EN55024 EN55022 Class A MSA
Power Device: External power adapter
Width: 3.2 in
Depth: 6.5 in
Height: 1 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 32
