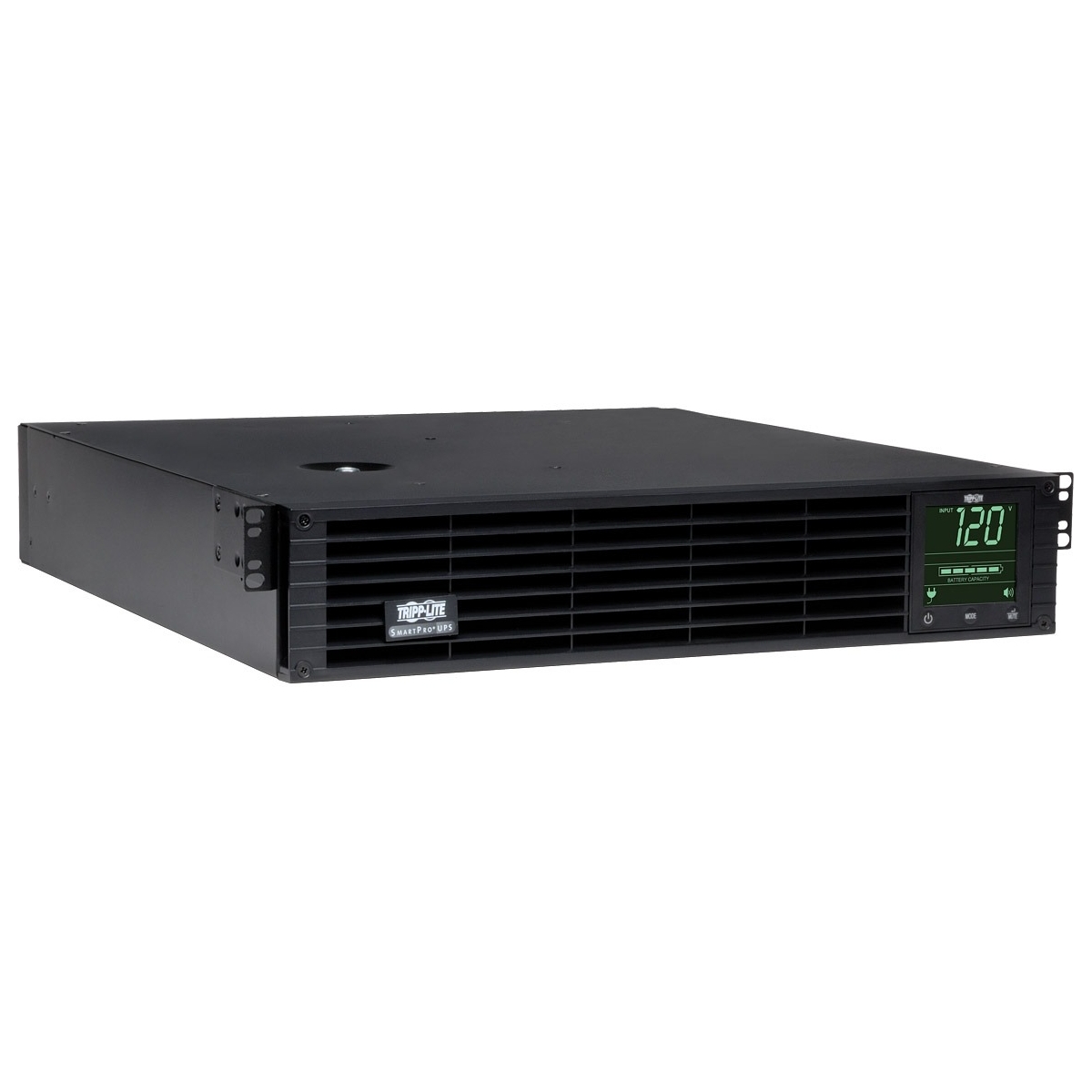

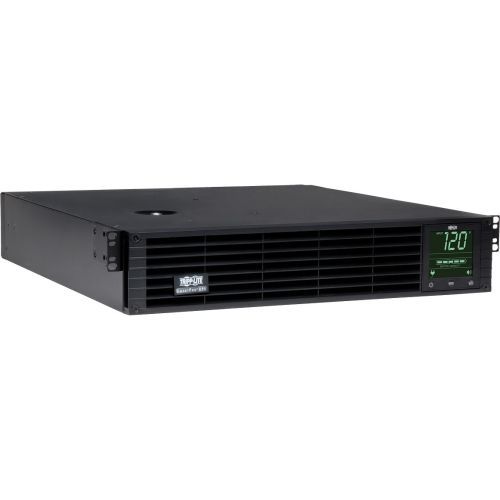

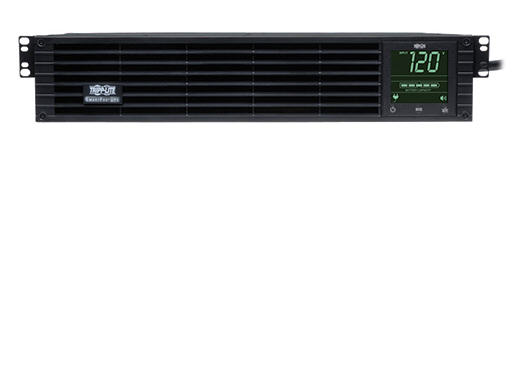

Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V Pure Sine Wave LCD USB DB9 2URM TAA - UPS ( rack-mountable / external ) - AC 120 V - 2250 Watt - 3000 VA - RS-232 USB - output connectors: 9 - 2U - 19 inch

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lites unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode detailed UPS and site-power data plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable hot-swappable battery modules. OUTPUT Output Capacity Details: Output capacity is reduced to 1600 watts in all external battery pack configurations Output Volt Amp Capacity (VA): 3000 Output kVA Capacity (kVA): 3 Output Watt Capacity (Watts): 2250 Output kW Capacity (kW): 2.25 Power Factor: 0.75 Nominal Output Voltage(s) Supported: 120V Frequency Compatibility: 60 Hz Output Voltage Regulation (Line Mode): -14% +6% Output Voltage Regulation (Battery Mode): +/- 5% UPS Output Receptacles: 8 5-15/20R outlet(s); 1 L5-30R outlet(s) Output Receptacles: Two switchable single-outlet load banks Output Circuit Breakers: Two 20A output breakers protect 4 5-15/20R outlets each Output AC Waveform (AC Mode): Pure Sine wave Output AC Waveform (Battery Mode): Pure Sine wave INPUT Rated input current (Maximum Load): 24A Nominal Input Voltage(s) Supported: 120V AC UPS Input Connection Type: L5-30P UPS Input Cord Length (ft.): 10 UPS Input Cord Length (m): 3 Recommended Electrical Service: 30A 120V Input Phase: Single-Phase BATTERY Full Load Runtime (min.): 3.5 min. (2250w) Half Load Runtime (min.): 10 min. (1125w) Expandable Battery Runtime: Extended runtime supported via optional external battery packs External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V242UTAA (limit 1); BP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible); BP48V60RT3UTAA (multi-pack compatible) DC System Voltage (VDC): 48 Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% Replacement Battery Cartridge (Internal UPS Battery Replacement): RBC94-2U Battery Access: Front panel battery access door Battery Replacement Description: Hot-swappable user replaceable batteries VOLTAGE REGULATION Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145 Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12% Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12% Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24% LEDS ALARMS & SWITCHES Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data plus configuration of voltage operating mode alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) Audible Alarm: Audible alarm indicates UPS startup power-failure low-battery overload UPS fault and remote shutdown conditions Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available Switches: 3 pushbutton switches control OFF / ON power status MODE selection and MUTE / ENTER control functions SURGE / NOISE SUPPRESSION UPS AC Suppression Joule Rating: 570 UPS AC Suppression Response Time: Instantaneous EMI / RFI AC Noise Suppression: Yes PHYSICAL Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND); 2-4 post front rail rackmount (UPSHDEARKIT) Primary Form Factor: Rackmount UPS Power Module Dimensions (hwd in.): 3.5 x 17.5 x 19.5 UPS Power Module Dimensions (hwd cm): 8.9 x 44.4 x 49.5 Rack Height: 2U Secondary Form Factor: Tower (requires 2-9USTAND ) UPS Power Module Weight (lbs.): 62.8 UPS Power Module Weight (kg): 28.5 UPS Shipping Dimensions (hwd / in.): 7.9 x 21.7 x 24.2 UPS Shipping Dimensions (hwd / cm): 20.1 x 61.5 x 62 Shipping Weight (lbs.): 73.8 Shipping Weight (kg): 33.5 Cooling Method: Fan UPS Housing Material: Steel ENVIRONMENTAL Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius Relative Humidity: 0 to 95% non-condensing AC Mode BTU / Hr. (Full Load): 189 AC Mode Efficiency Rating (100% Load): 98% Operating Elevation (ft.): 0-3000m / 0-10000 ft. COMMUNICATIONS Communications Interface: USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions PowerAlert Software: Included Communications Cable: USB and DB9 cabling included WatchDog Compatibility: Supports Watchdog application OS and hard-reboot restart options for remote applications Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at Lite LINE / BATTERY TRANSFER Transfer Time: 5 milliseconds (AC to battery); 1 millisecond (battery to AC) Low Voltage Transfer to Battery Power (Setpoint): 83 High Voltage Transfer to Battery Power (Setpoint): 145 SPECIAL FEATURES Grounding Lug: Includes back panel grounding lug Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported High Availability UPS Features: Hot swappable batteries Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks CERTIFICATIONS UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; ENERGY STAR Qualified

Specification:
Device Type: UPS - rack-mountable / external
Height (Rack Units): 2U
Rack Size: 19
UPS Technology: Line interactive
Input Voltage: AC 120 V
Input Connector(s): 1 x power NEMA L5-30

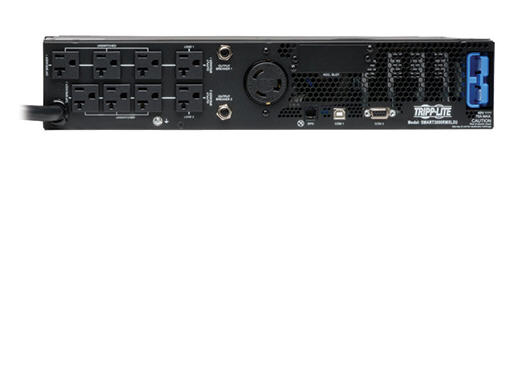

Power Output Connectors Details: 8 x power NEMA 5-15/20
Output Voltage: AC 120 V ( 60 Hz )
Power Capacity: 2250 Watt / 3000 VA
Output Waveform: Sinewave
Surge Suppression: Yes
Surge Energy Rating: 570 Joules
Circuit Protection: Circuit breaker
Voltage Provided: 48 V
Run Time (Up To): 3.5 min at full load
Remote Management Interface: RS-232 USB
Interfaces: 1 x RS-232 - 9 pin D-Sub (DB-9)
Expansion Slot(s): 1 (total) / 1 (free) x expansion slot
Cables Included: 1 x USB cable - external
Rack Mounting Kit: Included
Equipment Protection Value: 250000 US Dollars
Features: Audible alarm LCD display Automatic Voltage Regulation (AVR) LED indicators overvoltage protection cooling fan
Compliant Standards: CSA NOM UL 1778 RoHS FCC Part 15 A
Software Included: TrippLite PowerAlert
ENERGY STAR: Yes
Service & Support: 2 years warranty ( United States Canada Mexico Latin America - 3 years )
Service & Support Details: Limited warranty - 2 years
Min Operating Temperature: 32
