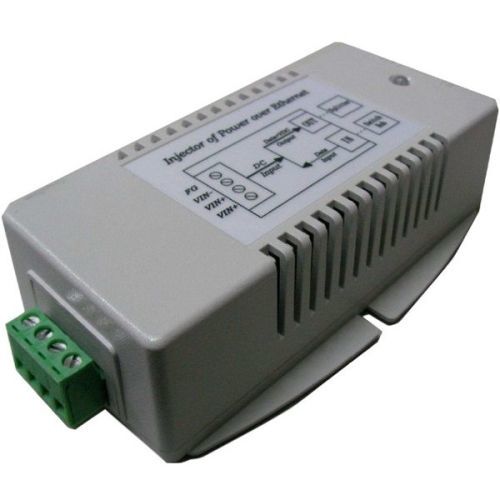

The is a special very high power DC to DC converter / POE inserter designed and qualified for use with Axis Q60 Series outdoor PTZ security cameras. The DCDC converter supplies 35W per POE channel. One POE channel is using pins 4578 and the other POE channel utilizes pins 1236. By splitting the power onto separate POE channels the device can achieve 70W total supplied power to the end device. The has separate LED indicators for indicating which 802.3at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2. The has been qualified by Axis to be used with their Q60 series of PTZ cameras. The unit can be used with any 802.3at device as it will supply 35W to any 802.3at POE channel detected. If two channels are detected on the client then 70W power will be supplied. They have two isolated inputs for connecting 2 power sources like a primary and backup power source. They have various protections for surge short circuit and overload. The input and output are isolated.
Specification:
Power Device Type: Power Converter
Power Provided (W): 70 Watt
Specification:
Power Device Type: Power Converter
Power Provided (W): 70 Watt
