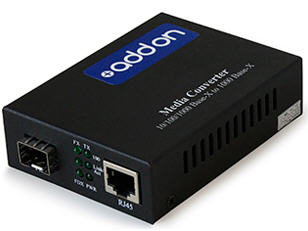

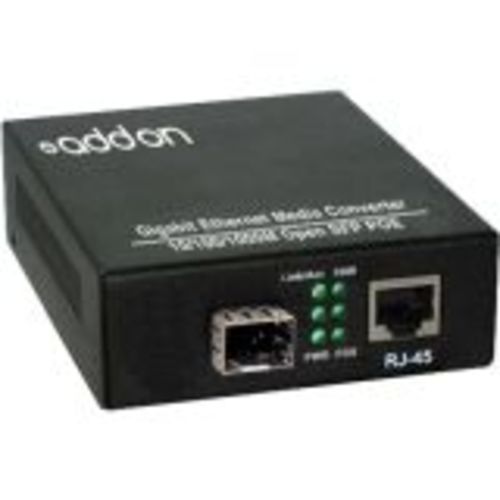

Addon 1000Base-TX To Open SFP Port POE Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 10/100/1000Base-T 1000Base-X - 1 x Expansion Slots - 1 x SFP Slots

AddOn Network Upgrades is a Media Converter that converts a 1000Base Copper to 1000Base-X via an Open SFP Port connector. The Open SFP Port allows users to customize between the SX LX or BX connections. The provides a cost effective conversion from 1000Base Copper to 1000Base-X while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault.

Specification:
Product Name: 1000Base-TX To Open SFP Port POE Media Converter
Marketing Information: ADD-GMC-SFP-POE is a Media Converter that converts a 1000Base Copper to 1000Base-X via an Open SFP Port connector. The Open SFP Port allows users to customize between the SX LX or BX connections. The ADD-GMC-SFP-POE provides a cost effective conversion
Marketing Information: Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program we can guarantee your produ
Product Type: Transceiver/Media Converter
Total Number of Ports: 1
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-X
Input Voltage: 110 V AC
Height: 1.5
Width: 5
Depth: 6
Weight (Approximate): 1.40 lb
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Limited Warranty: 3 Year
