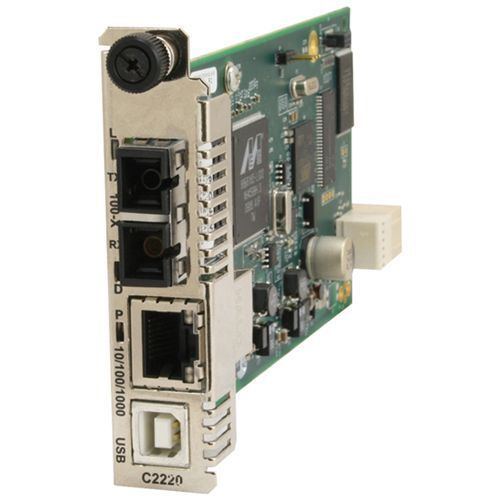

The Transition C2220 automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration. In addition it allows devices to perform automatic configuration to achieve the best possible mode of operations over a link.
Specification:
Device Type: Media converter
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-FX 100Base-TX 1000Base-T
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 1310 nm
MAC Address Table Size: 8K entries
Remote Management Protocol: SNMP 1 Telnet SNMP 2c HTTP
Max Transfer Distance: 12.4 miles
Status Indicators: Link activity power
Features: DHCP support auto-negotiation VLAN support Syslog support manageable AutoCross Far End Fault (FEF) firmware upgradable SNTP support Trivial File Transfer Protocol (TFTP) support RADIUS support SSH support Jumbo Frames support
Compliant Standards: IEEE 802.3 IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.3ah
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Compatible Slots: 1 x expansion slot
Compliant Standards: FCC Class A certified EN 60950 EN55024 EN55022 Class A
Power Consumption Operational: 4.5 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Specification:
Device Type: Media converter
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-FX 100Base-TX 1000Base-T
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet
Data Transfer Rate: 1 Gbps
Optical Wave Length: 1310 nm
MAC Address Table Size: 8K entries
Remote Management Protocol: SNMP 1 Telnet SNMP 2c HTTP
Max Transfer Distance: 12.4 miles
Status Indicators: Link activity power
Features: DHCP support auto-negotiation VLAN support Syslog support manageable AutoCross Far End Fault (FEF) firmware upgradable SNTP support Trivial File Transfer Protocol (TFTP) support RADIUS support SSH support Jumbo Frames support
Compliant Standards: IEEE 802.3 IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.3ah
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Compatible Slots: 1 x expansion slot
Compliant Standards: FCC Class A certified EN 60950 EN55024 EN55022 Class A
Power Consumption Operational: 4.5 Watt
Width: 0.9 in
Depth: 6.5 in
Height: 3.4 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
