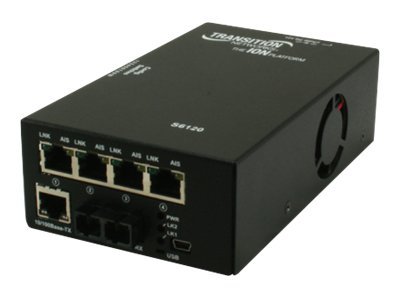

The ION 4xT1/E1/J1 copper to fiber network interface device (NID) provides a solution for those users that need to extend multiple T1/E1 connections and 10/100 Mbps Ethernet over fiber. The ION 4xT1/E1/J1 supports Small Form Pluggable (SFP) transceivers to support a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. The use of Coarse Wave Division Multiplexing (CWDM) SFPs can be utilized to further increase the bandwidth capacity of the fiber infrastructure.
Specification:
Device Type: Short-haul modem
Form Factor: External
Localization: North America
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-TX
Data Link Protocol: Ethernet Fast Ethernet
Data Transfer Rate: 100 Mbps
Optical Wave Length: 1310 nm
Line Rate: T-1/E-1/J-1
Framing Format: ANSI T1.403 G.703
Max Transfer Distance: 12.4 miles
Status Indicators: Power status
Features: Flow control auto-uplink (auto MDI/MDI-X) manageable AutoCross firmware upgradable
Interfaces: 1 x T1/E1/J1 - SC single mode female x 2
Compliant Standards: EN55024 EN55022 Class A
Power Device: External power adapter
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 6 Watt
Width: 3.7 in
Depth: 6.5 in
Height: 1.8 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 14
Specification:
Device Type: Short-haul modem
Form Factor: External
Localization: North America
Connectivity Technology: Wired
Cabling Type: 10Base-T 100Base-TX
Data Link Protocol: Ethernet Fast Ethernet
Data Transfer Rate: 100 Mbps
Optical Wave Length: 1310 nm
Line Rate: T-1/E-1/J-1
Framing Format: ANSI T1.403 G.703
Max Transfer Distance: 12.4 miles
Status Indicators: Power status
Features: Flow control auto-uplink (auto MDI/MDI-X) manageable AutoCross firmware upgradable
Interfaces: 1 x T1/E1/J1 - SC single mode female x 2
Compliant Standards: EN55024 EN55022 Class A
Power Device: External power adapter
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 6 Watt
Width: 3.7 in
Depth: 6.5 in
Height: 1.8 in
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - lifetime
Min Operating Temperature: 14
